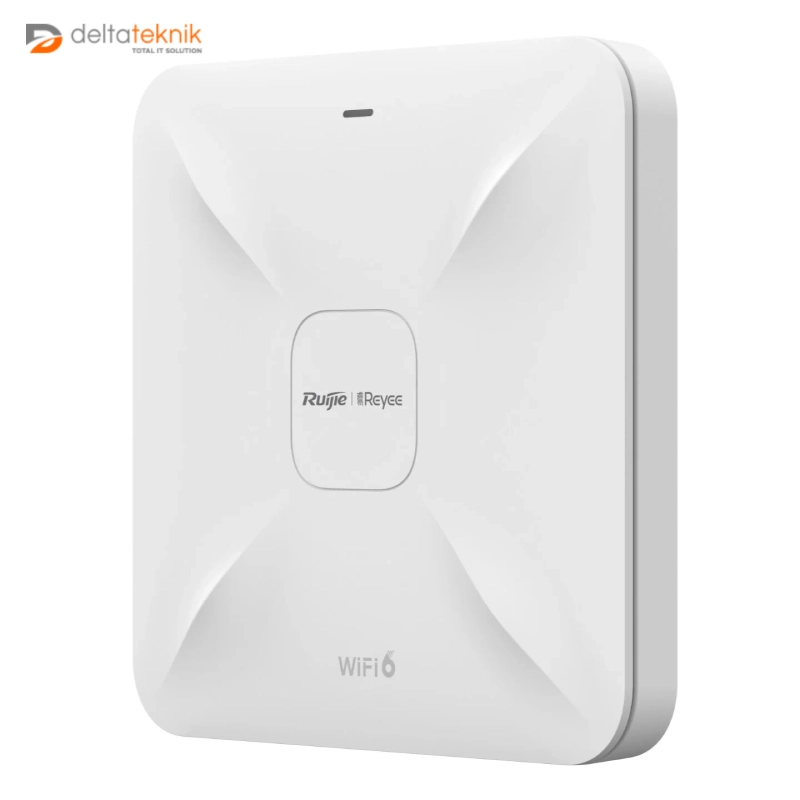

RG-RAP2260(G) Reyee Wi-Fi 6 1775Mbps

Ruijie RAP-2260-G adalah access point Wi-Fi 6 berperforma tinggi dengan koneksi stabil, kecepatan cepat, dan manajemen cloud mudah. Ideal untuk kantor, sekolah, dan bisnis yang butuh jaringan andal & efisien.
Product Type Ceiling AP
Wi-Fi Radio

Radio design Dual-radio4 spatial streams
● 2.4 GHz: 2 x 2, MU-MIMO
● 5 GHz: 2 x 2, MU-MIMO

Maximum wireless data rate 1774 Mbps
6 GHz wireless data rate No
5 GHz wireless data rate 1201 Mbps
2.4 GHz wireless data rate 573 Mbps
Antenna 2.4 GHz: 2 built-in omnidirectional antennas , 5 GHz: 2 built-in omnidirectional antennas
Product dimensions (W x D x H) 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket)
Color White
Weight ≤ 0.55 kg (1.21 lbs.) (without packaging materials)
Port Specifications Number of 10/100/1000BASE-T ports 2
Power Supply and Consumption
Power supply DC power adapter , PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply Yes, one DC power connector (12 V, 1.5 A)
PoE budget No
Maximum power consumption 15.5 W
Operating temperature 0°C to 40°C (32°F to 104°F)
Mounting options Ceiling/Wall
IP rating IP41
WLAN Maximum number of associated wireless clients 64 (2.4 GHz), 256 (5 GHz), 256 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed 300
IP Service IPv6 Yes

Model RG-RAP2260(G)
Radio Dual-stream dual-band
Protocol
Wi-Fi 6 (IEEE 802.11ax)

Wi-Fi 5 (IEEE 802.11ac Wave 2/Wave1)

Wi-Fi 4(IEEE 802.11n)

802.11a/b/g

Operating Bands
802.11b/g/n/ax : 2.4 GHz – 2.4835 GHz

802.11a/n/ac/ax : 5 GHz:

5.150 GHz – 5.350 GHz, 5.725 GHz – 5.850 GHz (country specific)

Antenna Built-in Omnidirectional Antennas (2.4 GHz: 3dBi, 5 GHz: 3dBi)
Spatial Streams
2.4 GHz: 2×2 MIMO

5 GHz: 2×2 MIMO

Max Throughput
Up to 574 Mbps at 2.4 GHz

Up to 1201 Mbps at 5 GHz

1.775 Gbps per AP

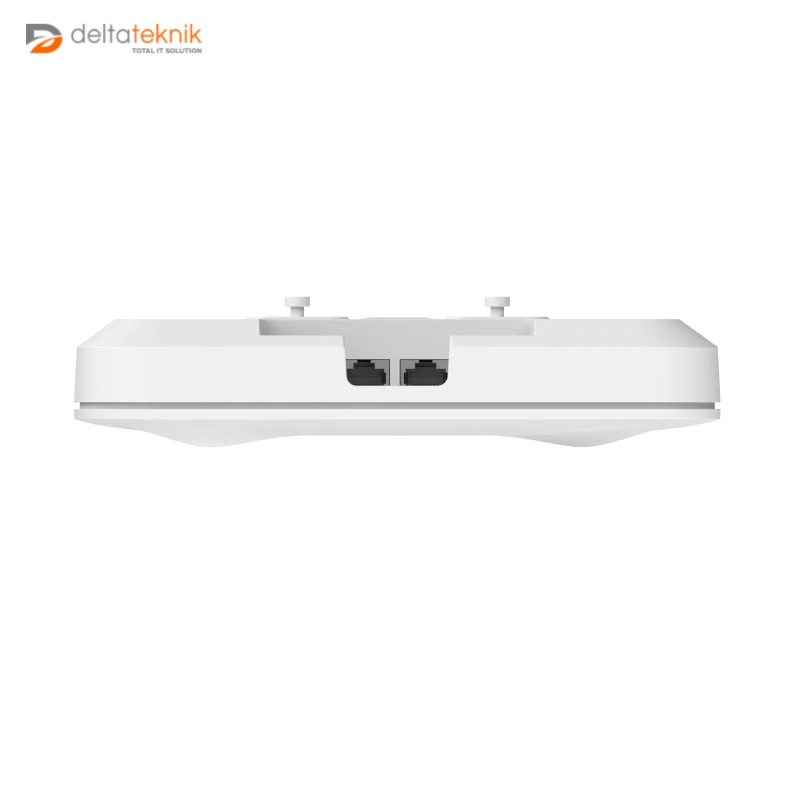

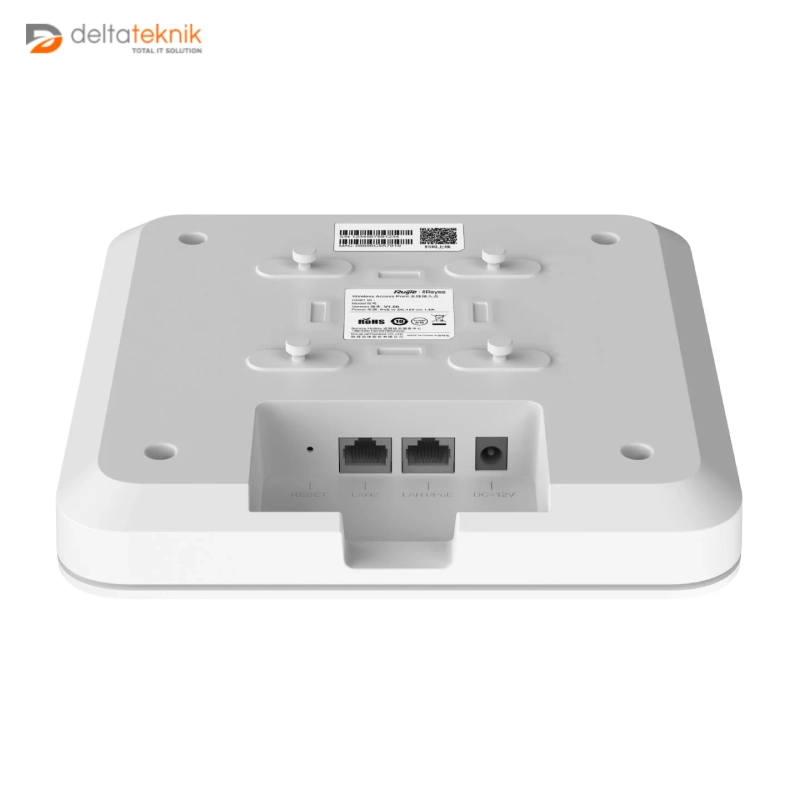

Service Ports
2 x10/100/1000M Base-T

LAN1 port supports PoE

Power Supply
Local power supply, DC 12V/1.5A
(Power adaptor dijual terpisah sebagai aksesori opsional)

802.3at PoE (Penggunaan adaptor PoE 802.3af atau adaptor PoE non-standar dapat menyebabkan masalah yang tidak diketahui. Disarankan untuk menggunakan switch PoE+ Ruijie atau adaptor PoE 802.3at sebagai sumber daya)

Power Consumption ≤ 15.3 W
Operating temperature 0°C – 40°C
Storage temperature -40°C – 70°C
MTBF >400000H
Operating Mode AP mode dan routing mode
Maximum number of clients 512
Recommended number of clients 100
Maximum Number of SSIDs 8
